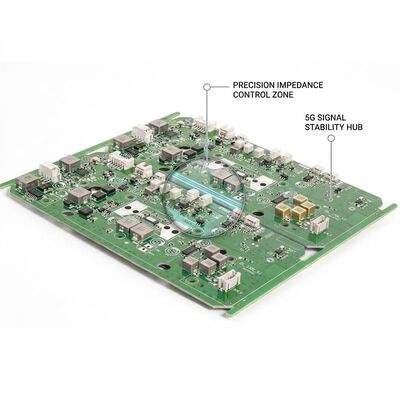

ISO9001 SMT PCB Assembly High Precision PCBA BGA Assembly SMT PCB Turnkey

ISO9001 SMT PCB Assembly High Precision PCBA BGA Assembly SMT PCB Turnkey

MOQ: 1 Piece
Price: $1-$500/Piece
Standard Packaging: Standard Package, 5X5X5 cm Per Unit, 0.5 kg Gross Weight
Delivery Period: 5-20 Working Days
Payment Method: T/T,PayPal,L/C,Western Union
Supply Capacity: 500000 Pieces/Month
Detail Information
Place of Origin
Guangdong, China
Brand Name
HTF
Certification
ISO9001:2015, ROHS certifications, UL, FCC and CE IATF16949
Type:
Industrial Control PCBA
Material:
FR4, Rogers, PTFE, Aluminum, PI
Functional Application:
Customization
Copper Thickness:
0.5-6OZ
Surface Finishing:
Lead-Free HASL, ENIG, Immersion Silver
Application:
Handheld Test Instrument, IoT Edge Gateway, Avionics Aerospace, High-Speed Test Equipment, Medical Therapeutic Device
Base Material:
FR4, FR1-4
Product Name:
PCB Board Assembly
Is Customized:
Yes
Supplier Type:
Customization
Service:
Customized OEM, Original IC/MCU Supplier
MOQ:
1 PCS
Package:
Standard Package
Highlight:

ISO9001 SMT PCB Assembly

,

High Precision PCBA BGA Assembly SMT PCB

,

PCBA BGA Assembly SMT PCB Turnkey

Product Description

HTF delivers high precision multi-layer HDI PCB assembly OEM services for industrial control, BGA, 0201 pitch PCBA, and electronics manufacturing on FR4, FR1-4, CEM1, and CEM3 high TG base materials with multi-thickness copper from 0.5 oz to 6 oz, and surface finish options including lead-free HASL, ENIG, and immersion silver under ISO9001, RoHS, and CE certified quality management with customized OEM manufacturing, original IC MCU supplier procurement, and 1 PCS minimum order quantity. Our multi-layer HDI PCB assembly service focuses on the manufacturing precision required to assemble components on the most advanced printed circuit board technology where the circuit density achieved through HDI construction demands assembly process precision that exceeds the requirements for conventional PCBs. Multi-layer HDI PCBs achieve their circuit density through several interconnected technologies including microvias that replace conventional through-hole vias for layer-to-layer connections, enabling higher routing density by consuming less board space per interconnection and not blocking routing channels on layers they do not connect. Fine lines and spaces down to 75 microns or less replace the 100 to 150 micron features of conventional PCBs, enabling more routing traces per layer. Sequential build-up construction where dielectric and copper layers are added to the core in successive lamination and plating cycles creates the multi-layer HDI structure with the interconnections required by high pin count components. The assembly of components onto multi-layer HDI PCBs requires precision process control at every stage because the margin for error is reduced proportionally to the reduction in feature sizes compared to conventional PCBs. Solder paste printing on HDI boards requires stencils with smaller apertures and tighter aperture spacing where the paste release characteristics, aperture wall quality, and printing parameters must be more tightly controlled because a paste deposit defect that would be acceptable on a larger conventional pad becomes a defect on a smaller HDI pad. Component placement on HDI boards requires tighter placement accuracy because the pad size is smaller and the acceptable placement offset before the component terminal loses contact with the pad is reduced. Reflow soldering on multi-layer HDI boards requires more precise thermal control because the thin dielectrics and dense copper of HDI construction produce faster thermal response than conventional PCBs. Our HDI assembly process addresses these requirements through precision stencil design and printing control, sub-25-micron placement with multi-stage vision alignment, and HDI-adapted reflow profiling that accounts for the unique thermal characteristics of multi-layer HDI boards.

Key Features
  • Multi-Layer HDI Precision Assembly: Manufacturing process control matching the reduced feature sizes and tighter tolerances of HDI PCB technology.
  • Microvia-Compatible Assembly: Process parameters protecting microvia structures from mechanical and thermal stress during assembly operations.
  • Reduced Feature Margin Control: Tighter printing, placement, and soldering process windows proportional to HDI feature size reductions.
  • Fine-Pitch Stencil Precision: Smaller HDI pad apertures with tighter spacing requiring superior stencil quality and printing process control.
  • Reduced Placement Tolerance: Smaller HDI pads reducing acceptable placement offset demanding the highest placement accuracy equipment.
  • Faster Thermal Response Control: Reflow profiles adapted to the more rapid heating and cooling of thin-dielectric dense-copper HDI boards.
  • 1 PCS MOQ HDI Precision: Single unit through volume with complete SPI, AOI, X-ray inspection and ISO9001, RoHS, CE quality.
Technical Specifications
Parameter Specification
Service High Precision Multi-Layer HDI PCB Assembly OEM
Assembly Focus Manufacturing Precision Matching HDI PCB Reduced Feature Sizes
Product Type Industrial Control PCBA Multi-Layer HDI Precision Assembly
HDI Technologies Microvias, Fine Lines and Spaces, Sequential Build-Up Construction
Printing Precision Tightly Controlled Smaller Apertures and Aperture Spacing for HDI Pads
Placement Accuracy Sub-25-Micron with Multi-Stage Vision for Reduced HDI Pad Tolerances
Thermal Control HDI-Adapted Reflow for Faster Thermal Response of Thin-Dielectric Boards
Microvia Protection Process Parameters Preventing Mechanical and Thermal Stress on Microvia Structures
Copper Thickness 0.5-6OZ
Base Materials FR4, FR1-4, CEM1, CEM3 High TG
Surface Finishes Lead-Free HASL, ENIG, Immersion Silver
Service Model Customized OEM and Original IC/MCU Supplier
MOQ 1 PCS
Certifications ISO9001, RoHS, CE
Applications

HTF high precision multi-layer HDI PCB assembly OEM serves the complete spectrum of electronics applications where HDI technology enables product performance and miniaturization that is not achievable with conventional PCB technology. Portable and handheld electronics including professional-grade test instruments, field measurement equipment, and portable data terminals where HDI PCB technology provides the circuit density for full-featured portable instruments in handheld form factors benefit from our HDI precision assembly for the manufacturing quality required by professional instrumentation. IoT edge computing and gateway devices where HDI PCB technology enables the integration of multi-core processors, multiple wireless interfaces, and sensor interfaces in compact DIN-rail or wall-mount enclosures utilize our HDI assembly for the circuit density required by these connected devices. Avionics and aerospace electronics where HDI PCB technology provides the size, weight, and performance demanded by aircraft and spacecraft platforms depend on our HDI precision assembly for the reliability essential for flight-critical systems. High-speed digital test and measurement equipment including oscilloscopes, logic analyzers, and protocol analyzers where HDI PCBs maintain signal integrity across multi-gigabit data paths with BGA FPGAs and high-speed ADCs benefit from our HDI assembly for signal integrity at the PCB assembly level. Medical therapeutic devices including infusion pumps, ventilators, and dialysis machines where HDI PCBs enable the compact, reliable electronics for life-sustaining medical equipment utilize our HDI assembly for the quality and documentation required by medical device regulations. Defense electronics including software-defined radios, radar processors, and electronic countermeasure systems where HDI PCB technology enables the processing performance and compact form factors of modern defense systems depend on our HDI precision assembly.

Packaging

Every multi-layer HDI precision assembly individually packaged in standard anti-static protective packaging at 5 by 5 by 5 centimeters with approximately 0.5 kilogram gross weight. Complete HDI precision documentation with stencil design data, paste inspection measurements, placement accuracy records, HDI-adapted reflow profiles, AOI and X-ray reports, and certificates of conformance. ISO9001, RoHS, CE certified factory manufacturing.
