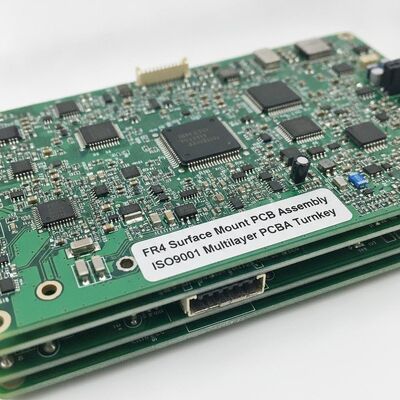

FR4 Surface Mount PCB Assembly ISO9001 Multilayer PCBA Turnkey

HTF operates as a custom OEM SMT PCBA manufacturer delivering FR4 multilayer PCB assembly with one stop turnkey service from our ISO/TS16949/RoHS certified facility in China. Our custom OEM manufacturing model provides product companies and electronics brands with tailored PCB assembly solutions that match their exact specifications rather than adapting to off-the-shelf manufacturing templates with compromises. We support FR4 multilayer constructions up to 48 layers with board thickness from 0.2mm to 6mm, copper weights from 0.5oz to 6oz, and precision manufacturing down to 0.15mm line width with 3-4mil line spacing for fine-pitch component compatibility. Beyond standard FR4, our material portfolio includes CEM1 and CEM3 for cost-optimized single and double-sided consumer products, and high-frequency laminates for RF and high-speed digital applications. The one stop turnkey service encompasses design review, component procurement management, SMT and through-hole assembly, comprehensive testing to IPC-A-600 standards, and logistics coordination, with every project receiving a 2-hour quotation and 24-hour technical support throughout the production cycle from our dedicated engineering team.

• Custom OEM Manufacturing Flexibility: Fully tailored PCB assembly solutions configured to your exact specifications including board dimensions from rectangular to complex shapes with slots and cutouts, layer count from single-sided to 48-layer multilayer, material selection across FR4, CEM1, CEM3, and high-frequency substrates, surface finish choice between HASL, ENIG, and OSP, and solder mask color in green, black, blue, red, or matt green.
• 48-Layer Advanced Multilayer Capability: Industry-leading 48-layer PCB assembly support with controlled impedance structures, blind and buried via technology, back-drilling for signal integrity optimization, and fine-line etching down to 0.15mm enabling complex high-density interconnect designs demanded by modern telecommunications infrastructure, aerospace systems, and high-performance computing platforms.
• Comprehensive Material Selection: Access to standard FR4 for general applications, CEM1 and CEM3 for cost-effective consumer electronics, and high-frequency board materials for RF, microwave, and high-speed digital applications, with copper weights from 0.5oz for fine-line signal routing to 6oz for high-current power distribution on the same multilayer board.
• Multiple Surface Finish Options: HASL for economical general-purpose applications, ENIG for superior oxidation resistance and extended shelf life with excellent wire bonding capability, and OSP for flat pad surfaces optimized for fine-pitch SMT component placement, selected based on your specific assembly and end-use requirements.
• Multi-Format Design File Support: Accept Gerber files, PROTEL 99SE, PROTEL DXP, CAM350, and ODB++ (.TGZ) formats for seamless integration with diverse customer design environments, eliminating the need for file format conversion that can introduce errors or delay project initiation in multi-team development environments.
• IPC-A-600 Fabrication Quality: All bare PCB fabrication adheres to IPC-A-600 Class 2 acceptability standards with documented inspection covering etch definition, hole wall quality, solder mask registration, legend legibility, and surface finish uniformity, providing the quality foundation necessary for reliable SMT and through-hole assembly results.
• ISO/TS16949/RoHS Triple Certification: Manufacturing operations governed by ISO quality management, TS16949 automotive-grade process control with failure mode effects analysis and statistical process monitoring, and RoHS compliance verified through XRF material analysis, ensuring products meet regulatory requirements for all major global markets.

Our custom OEM SMT PCBA manufacturing service serves diverse industries where tailored PCB assembly solutions and reliable supply chain management are essential for product success. Consumer electronics brands utilize our OEM service for smart home device controllers, wireless audio product main boards, portable power bank PCBs, and IoT sensor hub assemblies where custom board shapes, compact form factors, and consistent manufacturing quality across production volumes directly impact retail product performance and customer satisfaction. Power electronics manufacturers depend on our heavy copper capability up to 6oz for motor drive inverter boards, power supply controller PCBs, solar inverter interface assemblies, and UPS system control modules where high-current traces must coexist with fine-pitch control circuitry on the same multilayer board without compromising either function. LED lighting companies leverage our aluminum substrate and FR4 capability for LED driver boards, smart lighting controller PCBs, DMX interface modules, and architectural lighting control assemblies where thermal management and long-term reliability are critical performance requirements for products expected to operate for tens of thousands of hours. Security and surveillance equipment manufacturers partner with us for IP camera main boards, NVR/DVR processing PCBs, access control system controller assemblies, and intercom interface modules where the 48-layer capability supports the high-density digital processing and multiple high-speed interfaces required by modern multi-channel video surveillance and access management systems.

Each PCB assembly is individually vacuum-sealed in anti-static moisture barrier packaging with desiccant and humidity indicator cards, then placed in protective cartons measuring 10.0cm x 15.0cm x 10.0cm with approximately 0.5kg gross weight per single unit. Our ISO/TS16949 certified quality management system enforces rigorous process controls at every manufacturing stage: incoming material verification including laminate quality and copper foil thickness inspection, in-process dimensional checks, post-etch trace width verification through automated optical inspection, solder mask registration and cure integrity testing, surface finish thickness measurement via X-ray fluorescence spectroscopy, and comprehensive electrical testing including flying probe continuity verification and isolation resistance measurement. All products are manufactured to IPC-A-600 acceptability standards for printed boards with documented inspection records. RoHS compliance is verified through XRF material analysis. Complete traceability linking each board to component lots and process parameters is maintained, with 24-hour technical support available for all customer inquiries and a quotation turnaround within 2 hours for new project evaluations.
