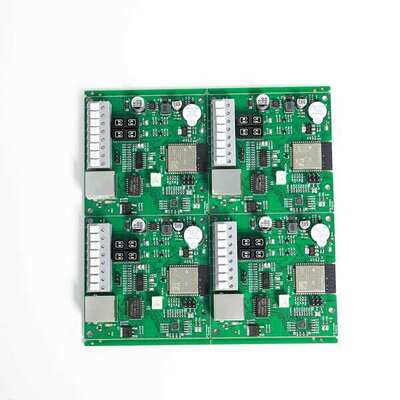

Circuit Protection Through Hole PCB Assembly Turnkey Board PCBA Safety

HTF manufactures through-hole PCB assemblies engineered specifically for circuit protection applications where reliable electronic safeguarding determines product safety and service longevity. Our circuit protection boards integrate discrete through-hole protection components including resettable PTC fuses, metal oxide varistors, gas discharge tubes, transient voltage suppression diodes, thermal fuses, and electromechanical circuit breakers onto FR4 substrates with optimized trace geometries for minimal protection circuit impedance and maximum surge current handling. Through-hole construction is particularly advantageous for protection circuits because leaded components offer superior thermal dissipation compared to surface-mount equivalents, higher voltage isolation through increased creepage and clearance distances inherent in through-hole mounting, and mechanical robustness that maintains protection function integrity even after multiple fault-clearing events. Every protection assembly undergoes comprehensive validation testing including surge immunity characterization, overcurrent trip verification, and dielectric withstand testing to verify protection parameters meet or exceed design specifications before shipment.

• Circuit Protection Design: Through-hole PCB assemblies integrating multi-level protection schemes combining overcurrent, overvoltage, ESD, and thermal protection on single boards with coordinated protection device selection for comprehensive electronic system safeguarding.
• Through-Hole Protection Components: Full range of leaded protection devices including resettable PTC thermistors, metal oxide varistors, TVS diodes in axial and radial packages, gas discharge tubes, thermal cutoff fuses, and miniature circuit breakers.
• Enhanced Clearance Distances: Through-hole mounting inherently provides greater creepage and clearance distances between high-voltage nodes compared to surface-mount layouts, improving protection reliability in mains-connected and high-voltage applications.
• Thermal Management: Leaded protection components dissipate fault energy more effectively through their leads into the PCB copper planes compared to surface-mount packages, enabling higher surge energy handling without protection device degradation.
• Replaceable Protection: Socketed through-hole protection components enable field replacement of sacrificial protection devices without desoldering, reducing equipment downtime and service costs for industrial and infrastructure applications.
• Multi-Layer Protection: Cascaded protection architectures with primary surge arrestors, secondary voltage clamping, and tertiary overcurrent limiting implemented on multilayer FR4 boards with controlled impedance for signal-line protection circuits.
• Compliance Validation: Pre-shipment surge testing per IEC 61000-4-5, ESD testing per IEC 61000-4-2, and dielectric withstand testing per IEC 60950 verifying protection performance against internationally recognized immunity standards.

HTF circuit protection through-hole assemblies safeguard electronic systems in applications where protection failure is not an option. Home appliance manufacturers integrate our protection boards into washing machine motor controllers, microwave oven power supplies, and induction cooktop inverter stages where mains surge withstand, motor stall overcurrent protection, and regulatory safety compliance are mandatory design requirements. Industrial automation systems including PLC I/O modules, sensor interface units, and fieldbus network nodes rely on our through-hole protection assemblies for surviving the electrically aggressive factory floor environment with its inductive load switching transients, ground potential differences, and conducted electromagnetic interference. Power distribution equipment such as surge protective devices, automatic transfer switches, and power monitoring units utilize through-hole protection circuits for the high-energy surge handling and galvanic isolation inherent in leaded component construction. Renewable energy systems including solar combiner boxes, wind turbine control electronics, and battery energy storage management units depend on our protection assemblies combining high-voltage isolation with robust surge handling for outdoor-installed grid-connected power electronics. Telecom infrastructure equipment deployed in lightning-exposed outdoor locations including cellular base station power feeds, fiber-optic network terminals, and microwave backhaul radios rely on through-hole GDT and MOV protection stages for multi-kiloamp surge current handling during direct and indirect lightning events.

Each circuit protection assembly undergoes standard inspection plus surge waveform verification, trip-time characterization, and dielectric withstand testing on production samples. Protection component batch traceability is maintained throughout manufacturing for full supply chain transparency. Boards are packaged in anti-static bags at 5×5×5 cm per unit dimensions with 0.5 kg gross weight. ISO 9001 certified quality management, RoHS material compliance, and CE product conformity provide the regulatory foundation for global market access across consumer, industrial, and infrastructure application sectors.
