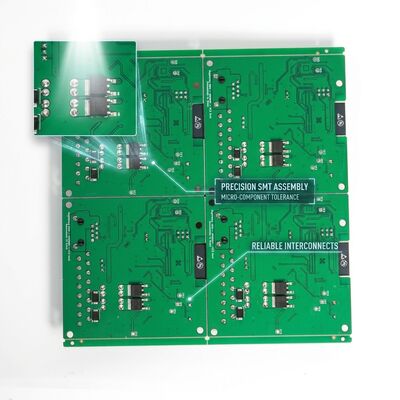

1oz Copper Rigid Flex PCB Assembly ISO Certified Printed Circuit Board Assembly Turnkey

HTF sets the industry benchmark for rigid-flex PCB assembly quality through our comprehensive 100% testing protocol combining automated optical inspection, in-circuit testing, and functional testing on every single board produced. Quality is not an add-on service at HTF—it is embedded into every process step from incoming material verification through final outgoing inspection. Our testing infrastructure includes multiple automated optical inspection systems with 3D solder paste inspection capability, flying probe testers for rapid prototype validation, bed-of-nails ICT fixtures for production volumes, and fully programmable functional test stations configured to your exact product specifications. This multi-layered testing approach catches defects that any single test method would miss, delivering field reliability rates exceeding 99.6% across our installed base of millions of boards deployed in home appliances, industrial equipment, medical devices, and automotive electronics worldwide.

• 100% AOI Testing: Every board undergoes automated optical inspection with high-resolution cameras capturing solder joint geometry, component presence, polarity, and offset against CAD data with micron-level accuracy.
• In-Circuit Testing: Comprehensive ICT coverage verifying resistor values, capacitor presence, diode polarity, transistor gain, and netlist connectivity across all accessible nodes on every production board.
• Functional Testing: Custom FCT fixtures and test programs developed to your product specifications, validating end-to-end functionality under simulated operating conditions including temperature, voltage, and signal stimulus.
• X-Ray Inspection: Real-time X-ray analysis for BGA, QFN, and other hidden-joint packages verifying solder ball collapse, void percentage, bridging detection, and head-in-pillow defects invisible to optical methods.
• First Article Inspection: Detailed FAI report per AS9102 / IPC standards with cross-sectional micrograph analysis, solder joint evaluation, and dimensional verification on initial production samples before batch approval.
• Traceability System: Unique serial number and 2D data matrix code marking on every board linking to complete production history including component date codes, machine parameters, and test results for full lifecycle traceability.
• Continuous Improvement: Real-time SPC monitoring of key process indicators with automated alerts for out-of-control conditions, root cause analysis protocols, and corrective action tracking through closure verification.

The rigorous testing protocols at HTF are particularly valued in application sectors where board failure carries unacceptable consequences. Automotive electronics programs including electric vehicle battery management systems, ADAS camera modules, and powertrain control units require zero-defect quality levels validated through our comprehensive testing cascade before shipment. Medical device manufacturers producing patient-connected equipment such as infusion pumps, defibrillators, and diagnostic imaging systems depend on our full traceability records and validated test data packages for regulatory submissions to FDA and notified bodies. Aerospace and defense contractors developing mission-critical avionics, navigation systems, and satellite communication payloads rely on our AS9100-aligned quality processes and first article inspection reports. Industrial safety systems including emergency shutdown controllers, gas detection monitors, and fire suppression panels demand the reliability our testing ensures. Even consumer electronics OEMs launching premium flagship products benefit from our testing rigor, achieving lower field return rates and stronger brand reputation through demonstrably higher product quality in competitive retail markets.

Tested and passed boards are immediately transferred to our certified packaging area where they undergo final visual inspection before being sealed in anti-static, moisture-barrier vacuum packaging with desiccant and humidity indicator cards. Each unit is individually packaged at 59.0×42.0×14.0 cm dimensions with 0.5 kg gross weight, with embedded ESD protection throughout the packaging system. Multi-unit shipments use reinforced double-wall corrugated master cartons with custom foam partitioning and shock indicators for transit condition monitoring. Every shipment includes a complete quality data package comprising certificate of conformance, detailed test reports per serial number, X-ray images for BGA devices, and material certificates for all laminate and surface finish materials used. Our ISO 9001:2015, ISO 14001:2015, CE, and RoHS certifications validate every aspect of our quality and environmental management commitment.
