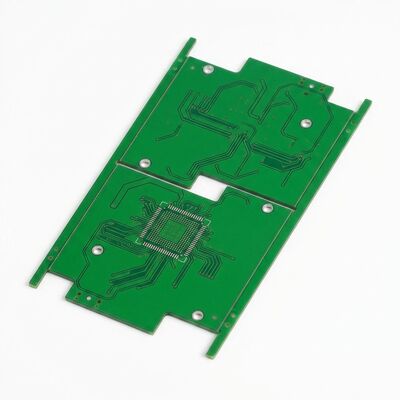

Multilayer BGA PCB Assembly 0.5 - 6OZ Copper PCB Manufacturing And Assembly IATF16949

HTF provides turnkey fabrication PCBA OEM electronics services with multilayer PCB assembly on 0.5-6OZ copper substrates, supporting BGA packages from 0.35mm to 1.0mm pitch from our IATF16949/ISO13485/ISO9001 certified manufacturing facility in Guangdong, China. The turnkey fabrication model delivers complete electronics manufacturing solutions where customers provide design files and receive fully assembled, tested, and packaged products ready for deployment, eliminating the complexity of managing separate PCB fabrication, component procurement, assembly, testing, and box build vendors. Our 0.5-6OZ copper PCB construction provides enhanced electrical and thermal performance compared to standard 1 OZ boards, with approximately double the current capacity per trace width and superior heat spreading for power-dense designs. The 0.15mm minimum line width and 3-4mil minimum line spacing capability supports high-density routing around fine-pitch BGA packages, while comprehensive AOI, X-Ray, and functional testing validates every assembly before shipment. With 1 PCS sample order minimum, components sourcing included, and extended box build services covering metal, plastic, LCD, and cable sub-assembly integration, our turnkey fabrication service provides the complete manufacturing capability that electronics product companies need from initial prototype through volume production within a single supplier relationship with triple-certified quality assurance.

• Complete Turnkey Fabrication Service: End-to-end manufacturing solution covering design review, component procurement from authorized global distributors, bare PCB fabrication coordination, SMT and through-hole assembly, comprehensive testing, box build integration, and final packaging, managed through a single supplier with unified quality accountability.
• 0.5-6OZ Heavy Copper Standard Construction: Heavier copper foil providing enhanced current handling for power electronics, improved thermal spreading for heat-generating components, and greater mechanical pad strength for connectors and large components, eliminating the need for bus bar attachments or external heat spreaders in many 2-layer and multilayer power designs.
• Full BGA Assembly and Rework: Capability from ultra-fine 0.35mm pitch through standard 1.0mm pitch BGA devices, with dedicated placement systems, package-specific reflow profiles, mandatory X-ray inspection of every BGA, and complete rework capability for prototype debugging and production correction without board scrappage.
• IATF16949 and ISO13485 Dual Certification: Automotive-grade process control meeting tier-one supplier quality expectations, combined with medical device manufacturing quality management supporting regulatory compliance, providing a certified manufacturing foundation that exceeds standard commercial PCBA service quality requirements.
• AOI, X-Ray, and Functional Testing: Three complementary inspection and test methods providing complete quality coverage: AOI for visible solder joint quality and component placement verification, X-ray for hidden BGA interconnection integrity, and functional testing for board-level performance validation under operating conditions.
• Components Sourcing Included: Full bill of materials procurement through authorized distributor relationships with documented chain of custody, incoming inspection for authenticity verification, and alternative part qualification for lead-time or allocation-constrained components, eliminating the customer burden of multi-line-item component procurement management.
• Box Build with Full Sub-Assembly: Extended manufacturing integration including metal enclosure assembly, plastic housing installation, LCD display mounting and connection, cable harness routing and securing, labeling, and final product packaging, delivering complete products ready for distribution without additional integration steps.

Our turnkey fabrication PCBA service supports complete electronics product manufacturing across industries where comprehensive supplier management and certified quality are critical to commercial success. Automotive tier-one suppliers leverage our IATF16949 certification for complete electronic module manufacturing including enclosure assembly, connector harness integration, conformal coating application, and functional end-of-line testing delivered as ship-ready products meeting automotive customer packaging and labeling requirements. Medical device OEMs depend on our ISO13485 quality system for complete instrument electronics manufacturing from PCB assembly through final product integration including touchscreen display mounting, battery pack installation, enclosure sealing, and sterilization-compatible packaging, supporting FDA 510(k) and CE marking technical file requirements with documented manufacturing process validation. Industrial equipment manufacturers utilize our box build service for complete HMI panel assemblies, industrial computer system integration, motor drive enclosure builds, and sensor module packaging where turnkey manufacturing reduces their in-house assembly labor and quality management overhead while ensuring consistent product quality through certified processes. IoT and smart device companies partner with us for complete product manufacturing from PCBA through final packaging including custom enclosure assembly, antenna connection and testing, firmware loading and configuration, and retail-ready packaging, enabling lean startups and established brands alike to bring connected products to market without investing in their own manufacturing infrastructure.

Each PCBA is individually vacuum-sealed in anti-static moisture barrier packaging with desiccant and humidity indicator cards, then placed in protective export-grade cartons. Our triple-certified quality management system (IATF16949/ISO13485/ISO9001) enforces rigorous process controls at every manufacturing stage. Incoming component verification ensures authenticity and specification compliance. Automated optical inspection examines all visible solder joints post-reflow. X-ray inspection verifies hidden BGA solder ball integrity under 0.35mm~1.0mm pitch packages per IPC-7095 criteria. Functional testing validates board-level performance under simulated operating conditions. Sub-assembly and box build services integrate metal enclosures, plastic housings, LCD displays, and cable harnesses for complete turnkey delivery. Full traceability documentation linking each board to component lots, process parameters, and test results is maintained for IATF16949 and ISO13485 compliance.
