BOM PCB Component Sourcing Integrated SMT PCB Assembly One Stop Service

SMT PCB Assembly Turnkey Component Sourcing Production Line 0201 BGA One-Stop Service HTF OEM

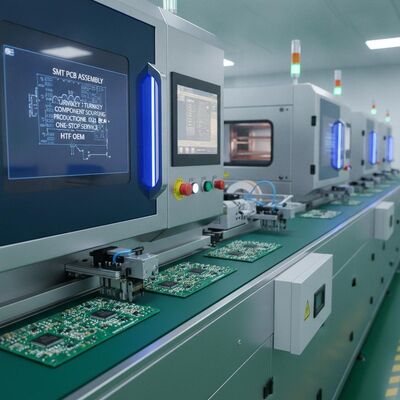

HTF provides advanced SMT PCB assembly turnkey services with integrated component sourcing that transforms your design files and bill of materials into fully assembled, tested surface mount circuit board assemblies through automated production lines engineered for precision placement, consistent soldering quality, and efficient throughput from prototype to high-volume production quantities. Our SMT production lines are equipped with high-speed placement systems handling the complete component size range from miniature 0201 chip resistors and capacitors through large body size ball grid array packages with fine 0.3mm pitch, quad flat no-lead packages, and large-scale quad flat packages, with placement accuracy verified through automated solder paste inspection and post-placement automated optical inspection before reflow. The turnkey service model eliminates the complexity of managing separate component procurement, stencil fabrication, PCB manufacturing, SMT assembly, and testing vendors by consolidating all activities under HTF project management with single-point accountability for quality, schedule, and cost. Component sourcing procures every component on your BOM through authorized distributor channels with incoming inspection including visual verification, electrical parametric testing, and authenticity validation. SMT process begins with laser-cut stainless steel stencil fabrication matched to your Gerber paste layer data, followed by automated solder paste printing with closed-loop alignment and inspection, high-speed component placement with vision alignment and electrical value verification for chip components, and nitrogen-atmosphere reflow soldering with multi-zone thermal profiling optimized for your specific board and component thermal mass. Inline BGA X-ray inspection verifies ball alignment, void content, and complete solder joint formation on hidden connections.

• Complete SMT Turnkey Integration: Full SMT assembly combining procurement, stencil fabrication, paste printing, placement, reflow, and inspection under one purchase order with single manager accountability.
• Full Component Range: High-speed placement handling 0201 through 55mm BGA and QFP with 0.3mm minimum pitch including QFN, LGA, and leadless packages.
• Closed-Loop Paste Inspection: Three-dimensional SPI measuring volume, height, area, and alignment on every paste deposit preventing the printing defects causing most SMT solder joint defects.
• Vision-Aligned Placement: Automated placement with vision alignment verifying position, rotation, and coplanarity, with electrical value measurement preventing incorrect values.
• Optimized Reflow: Nitrogen-atmosphere reflow with multi-zone profiling developed for your board based on component thermal mass and solder paste characteristics.
• BGA X-Ray Inspection: Inline X-ray of all area array package joints verifying alignment, void content, and complete formation on hidden connections.
• Turnkey Component Sourcing: Complete BOM procurement through authorized channels with MSD handling per J-STD-033, ESD protection, and lot-level traceability.

HTF SMT turnkey serves consumer electronics, IoT products, industrial control, and medical devices. Smartphones, wearables, smart home devices with high-density SMT assemblies depend on the placement precision and reflow consistency of automated lines. Wireless sensor nodes and edge computing modules benefit from turnkey integration eliminating multi-vendor complexity. Medical devices where SMT quality impacts patient safety depend on HTF workmanship to IPC-A-610 Class 3 standards.

Complete inspection and testing documentation including SPI reports, AOI images, X-ray images, ICT data, and functional test reports. Anti-static moisture-barrier bags at 35.0 by 25.0 by 15.0 cm with 0.55 kg gross weight. ISO 9001 quality management, RoHS and REACH compliance.
