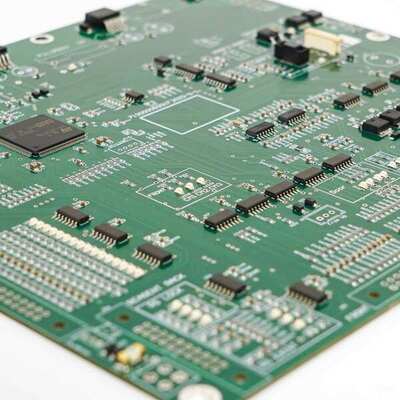

SMT Custom PCBA 0.4mm - 2.0mm Thickness OEM Circuit Board Circuit Protection

HTF operates a professional SMT custom PCBA factory in Guangdong, China, specializing in circuit protection printed circuit board assembly for applications where electrical safety and system reliability are paramount. Our factory integrates automated surface mount technology production lines with comprehensive testing capabilities to deliver assembled boards that meet stringent circuit protection requirements across consumer electronics, industrial equipment, power distribution systems, and automotive electronics. The manufacturing process supports multiple substrate materials including FR4 standard epoxy laminates, CEM1 and CEM3 composite epoxy materials for cost-sensitive applications, polyimide for high-temperature flexible circuits, and copper or aluminum base materials for superior thermal management in high-current protection circuits. With ISO9001, RoHS, and CE certifications governing our production operations, we provide OEM manufacturing services that scale seamlessly from single-piece prototype verification through pilot production and full mass production volumes. Every assembled board undergoes rigorous electrical testing to verify protection circuit functionality including overcurrent trip points, overvoltage clamping thresholds, and insulation resistance specifications before shipment.

• Circuit Protection Expertise: Specialized assembly capability for protection circuits including fuse boards, TVS diode arrays, ESD protection modules, overvoltage crowbar circuits, inrush current limiters, and polyfuse resettable protection designs with validated performance testing.
• SMT Custom Factory Production: In-house automated SMT assembly lines with high-speed pick-and-place capability, precision solder paste printing with automated inspection, and multi-zone reflow profiling optimized for mixed component types commonly found on protection circuit boards.
• Prototype to Mass Production Scalability: Flexible manufacturing configuration accommodating engineering prototype builds at 1 pcs MOQ, pilot production runs for design validation, and full-scale mass production with capacity exceeding 50,000 units monthly on the same factory production lines.
• Multi-Material PCB Processing: Support for FR4, FR1 through FR4, Rogers, PTFE, Aluminum, PI laminates, polyimide flexible substrates, copper core boards for high-current thermal management, and aluminum substrates for LED protection and power electronics applications.
• Versatile Surface Finish Selection: Lead-free HASL for RoHS-compliant general applications, ENIG electroless nickel immersion gold for superior solderability and extended shelf life, and immersion silver for high-frequency signal integrity on protection and sensing circuits.
• Comprehensive Testing Protocol: Multi-stage electrical verification including flying probe continuity and isolation testing, automated optical inspection for solder joint quality, and application-specific functional testing of protection circuit parameters such as trip current, clamp voltage, and response time.

The circuit protection PCBA service addresses critical requirements across multiple electronic product categories where electrical safety and equipment protection are essential design considerations. Power supply manufacturers utilize our assembly service for protection boards incorporating overvoltage protection circuits, overcurrent limiting modules, short-circuit detection and shutdown interfaces, and surge suppression networks that safeguard downstream electronics from electrical fault conditions. Industrial control equipment developers rely on our circuit protection assemblies for motor drive protection boards, sensor interface isolation circuits, PLC input protection modules, and communication line surge arrestors deployed in factory automation environments. Consumer electronics brands integrate our protection circuit boards into battery management systems for lithium-ion packs, USB charging port overcurrent protection modules, and AC adapter input protection circuits that ensure product safety compliance. Automotive electronics suppliers source protection assemblies for LED headlight driver boards with reverse polarity protection, fuse box interface PCBs, and battery monitoring system modules requiring robust overvoltage and undervoltage protection. Telecommunications equipment manufacturers depend on our assembly quality for network interface protection boards, PoE power delivery protection circuits, and antenna surge protection modules deployed in outdoor infrastructure installations where lightning and power cross events pose reliability risks.

Each assembled PCBA is individually vacuum-sealed in anti-static moisture barrier packaging with desiccant and humidity indicator cards, then packed in ESD-safe foam cushioning within compact shipping cartons measuring 5 cm x 5 cm x 5 cm per single unit with approximately 0.5 kg gross weight. HTF operates under ISO9001 certified quality management systems with full process documentation and traceability throughout the manufacturing workflow. Incoming components undergo verification including part number confirmation, value measurement, package type inspection, and visual condition assessment against approved vendor specifications. Solder paste application is monitored through automated solder paste inspection systems ensuring consistent deposit volume, alignment, and height across fine-pitch protection IC pads and power device footprints. Post-reflow automated optical inspection examines every solder joint for proper fillet formation, bridging defects, insufficient solder, component tombstoning, and placement offset, with high-resolution images captured for quality records. Electrical testing verifies continuity across all nets, isolation resistance between independent circuits, and protection function performance including overcurrent trip threshold verification, clamping voltage measurement under surge conditions, and insulation breakdown testing at specified voltage levels. Complete lot traceability documentation including component date codes and manufacturer identifiers, solder paste batch records, reflow thermal profiles, inspection images, and electrical test results is maintained for every production batch to support customer quality audits and product certification requirements.
