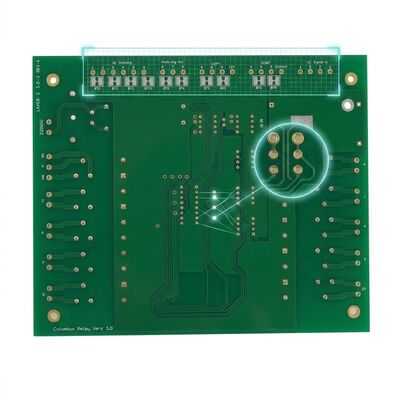

IATF16949 PCBA Assembly Services Multilayer Circuit Board Manufacturing OEM

HTF provides turnkey fabrication PCBA OEM electronics services with multilayer PCB assembly on 0.5-6OZ copper substrates, supporting BGA packages from 0.35mm to 1.0mm pitch from our IATF16949/ISO13485/ISO9001 certified facility in Guangdong, China. The turnkey fabrication model delivers complete electronics manufacturing solutions where customers provide design files and receive fully assembled, tested, and packaged products ready for deployment, eliminating the complexity of managing separate vendors. Our 0.5-6OZ copper construction provides enhanced electrical and thermal performance compared to standard 1 OZ boards, with approximately double the current capacity per trace width and superior heat spreading. The 0.15mm minimum line width and 3-4mil minimum line spacing supports high-density routing around fine-pitch BGA packages, while comprehensive AOI, X-Ray, and functional testing validates every assembly. With 1 PCS sample order minimum, components sourcing included, and box build services covering metal, plastic, LCD, and cable integration, our turnkey fabrication provides complete manufacturing capability from prototype through volume production within a single supplier relationship.

• Complete Turnkey Fabrication Service: End-to-end manufacturing covering design review, component procurement from authorized distributors, PCB fabrication coordination, SMT assembly, comprehensive testing, box build integration, and packaging through a single supplier with unified quality accountability.
• 0.5-6OZ Heavy Copper Standard:Heavier copper foil provides enhanced current handling for power electronics, improved thermal spreading for heat-generating components, and greater mechanical pad strength for connectors, eliminating need for bus bar attachments in many designs.
• Full BGA Assembly and Rework: Capability from ultra-fine 0.35mm through standard 1.0mm pitch BGA devices, with dedicated placement systems, package-specific reflow profiles, mandatory X-ray inspection, and complete rework capability for prototype debugging.
• IATF16949 and ISO13485 Dual Certification: Automotive-grade process control meeting tier-one supplier expectations combined with medical device quality management supporting regulatory compliance, exceeding standard commercial PCBA quality requirements.
• AOI, X-Ray, and Functional Testing: Three complementary methods providing complete quality coverage for visible joints, hidden BGA interconnections, and operational performance, addressing all potential failure modes in electronics assembly.
• Components Sourcing Included: Full BOM procurement through authorized distributors with documented chain of custody, incoming inspection for authenticity, and alternative part qualification for constrained components.
• Box Build with Full Sub-Assembly: Extended integration including enclosure assembly, display mounting, cable harness routing, labeling, and final packaging, delivering complete products ready for distribution.

Our turnkey fabrication PCBA service supports complete electronics product manufacturing across industries where comprehensive supplier management and certified quality are critical. Automotive tier-one suppliers leverage IATF16949 certification for complete module manufacturing including enclosure assembly, connector harness integration, conformal coating, and end-of-line testing. Medical device OEMs depend on ISO13485 for instrument electronics from PCB assembly through touchscreen integration, battery pack installation, and sterilization-compatible packaging. Industrial equipment manufacturers utilize box build for HMI panel assemblies, industrial computer integration, motor drive enclosure builds, and sensor module packaging. IoT and smart device companies partner with us for complete product manufacturing from PCBA through retail-ready packaging, enabling brands to bring connected products to market without in-house manufacturing infrastructure.

Each PCBA is individually vacuum-sealed in anti-static moisture barrier packaging with desiccant and humidity indicator cards, then placed in protective export-grade cartons. Our triple-certified quality system (IATF16949/ISO13485/ISO9001) governs every manufacturing stage with documented process controls. Automated optical inspection examines all visible solder joints, X-ray inspection verifies BGA solder ball integrity, and functional testing validates board performance. Box build services integrate enclosures, displays, and cable assemblies for complete turnkey delivery with full traceability documentation.
