Quick Turn 4 Layer PCB Assembly SMT Thru Hole Oem PCBA Full Testing

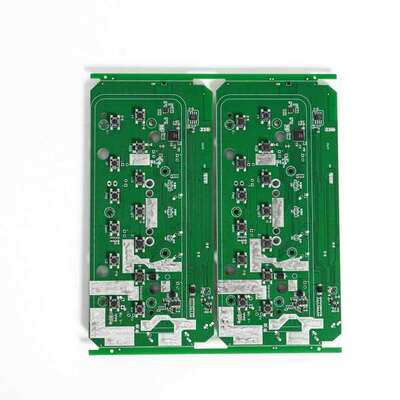

HTF delivers OEM manufacturing 4-layer PCBA solutions with integrated SMT, thru-hole assembly, quick turn production, and full testing services from our ISO/RoHS/TS16949 certified factory in Guangdong, China. Our OEM manufacturing model is designed to give consumer electronics brands and product companies complete control over their PCB specifications while leveraging our established manufacturing infrastructure, supply chain relationships, and quality management systems. The 4-layer construction provides the ideal platform for products requiring dedicated ground and power planes alongside two signal routing layers, a configuration that dramatically improves signal integrity, reduces crosstalk, and simplifies power distribution compared to simpler 2-layer designs while remaining cost-effective relative to more complex 6-layer and 8-layer alternatives. With FR-4/HTG150-180 base material supporting elevated temperature operation, 0.5-6OZ copper weights for balanced current handling and fine-line etching, and custom board sizes up to 255mm x 119.44mm, our OEM service accommodates diverse mechanical and electrical requirements from initial prototype validation through volume production.

• Tailored OEM Manufacturing: Fully customized production aligned with your exact specifications including board size, layer stack-up configuration, copper weight distribution, surface finish selection, solder mask color, and silkscreen requirements, with complete intellectual property protection and confidentiality assurance throughout the manufacturing engagement.
• 4-Layer Stack-Up Optimization: Standard 4-layer construction with Signal-Ground-Power-Signal configuration provides significant reduction in electromagnetic interference, major improvement in power distribution impedance, and enhanced signal return path integrity compared to 2-layer designs, making it ideal for mixed-signal consumer electronics with wireless communication requirements.
• Dual SMT and Thru-Hole Capability: Integrated assembly lines handling both high-speed SMT placement for fine-pitch digital components and wave or selective soldering for thru-hole connectors, power transistors, large capacitors, and electro-mechanical parts on the same board without requiring secondary processing at separate facilities or additional handling steps.
• Quick Turn Production Workflow: Streamlined manufacturing process optimized for rapid turnaround on 4-layer PCB assemblies, with parallel procurement and production preparation that reduces overall lead time for time-critical consumer electronics product launches and iterative prototype development cycles where each day of delay impacts market positioning.
• Comprehensive Full Testing: Multi-stage quality verification including automated optical inspection post-reflow, flying probe electrical testing for 100% netlist verification, isolation resistance measurement, and optional functional testing simulating real-world operating conditions to validate board performance before customer acceptance and integration into final products.
• HTG150-180 High-Temperature Performance: Enhanced FR-4 laminate with glass transition temperature rated 150-180°C provides improved resistance to delamination during multiple reflow cycles, better long-term reliability under elevated operating temperatures, and compatibility with lead-free soldering processes requiring higher peak reflow temperatures than traditional tin-lead processes.
• Custom Board Size Flexibility: Support for custom PCB dimensions up to 255mm x 119.44mm enables design optimization for specific product enclosures, eliminating the constraints of standard board sizes and allowing mechanical engineers to define board outlines based on industrial design requirements rather than manufacturing panelization limitations.

Our OEM 4-layer PCBA manufacturing service supports the complete product lifecycle for consumer electronics brands from concept validation through volume production. Smart home product companies utilize our OEM service for complete controller board assemblies in intelligent thermostats, motorized blind controllers, smart lock interface modules, and video doorbell main boards where the 4-layer construction provides essential signal integrity for wireless communication alongside precision sensor interfaces and power management circuits. Consumer audio brands depend on our mixed SMT/thru-hole assembly for Bluetooth speaker amplifier boards, soundbar main controller PCBs, wireless headphone charging case assemblies, and portable DAC/amplifier modules where large thru-hole capacitors and connectors coexist with fine-pitch audio codec and amplifier ICs on the same board. Gaming peripheral manufacturers leverage our quick turn production for mechanical keyboard controller boards, gaming mouse sensor interface PCBs, controller interface modules, and RGB lighting controller assemblies where rapid design iteration and reliable production quality directly impact product launch success and gamer satisfaction. Health and fitness device companies partner with us for heart rate monitor sensor boards, smart scale controller PCBs, fitness tracker charging dock assemblies, and sleep tracking device main boards requiring reliable multilayer construction for sensitive bio-signal measurement circuits where electrical noise and interference must be minimized.

Each 4-layer PCBA is individually vacuum-sealed in anti-static moisture barrier packaging with desiccant and humidity indicator cards, then placed in protective cartons measuring 10.0cm x 10.0cm x 0.1cm with approximately 0.01kg gross weight per single unit. Our ISO certified quality management system governs every production stage: incoming material verification including laminate quality inspection and copper foil thickness measurement, in-process dimensional checks at each layer lamination stage, post-etch trace width and spacing verification through automated optical inspection, solder mask registration and cure integrity testing, surface finish thickness verification via X-ray fluorescence spectroscopy, and comprehensive electrical testing including flying probe continuity verification, isolation resistance measurement, and netlist conformance checking. For TS16949 automotive-grade products, additional process documentation including production part approval process reports, failure mode effects analysis records, and full component traceability documentation are provided. RoHS compliance is verified through XRF material analysis, and ISO certification documentation is maintained for all assembled boards to support customer quality audit and regulatory submission requirements for global market access.
